Installation for New Style Desiccant Holder
Old electronics (Multi-board)
- Take the lid off the brewer
- Turn off the brewer
- Remove the tub of desiccant

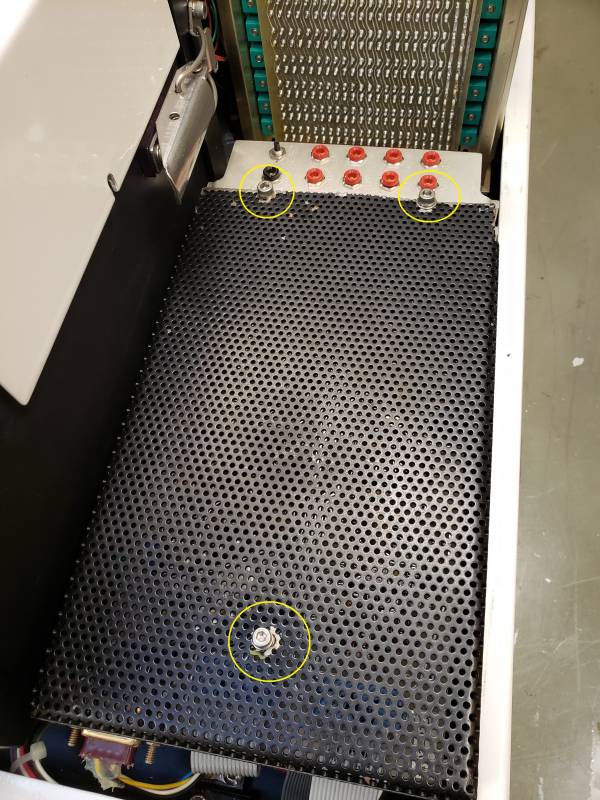

- Remove the 3 holding down the case on the secondary power supply as shown below

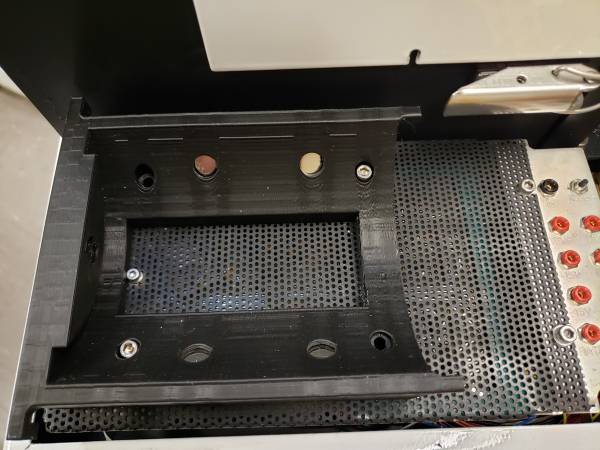

- Remove the secondary power supply cover and replace it with one that has the desiccant holder pre-installed.

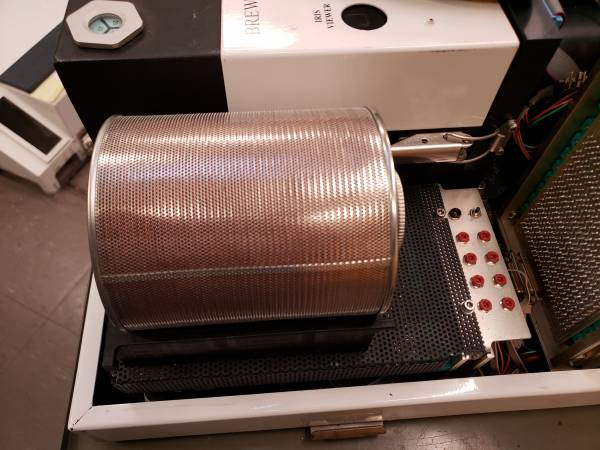

- Place a fresh can of desiccant into the holder
New Electronics (Single-board)

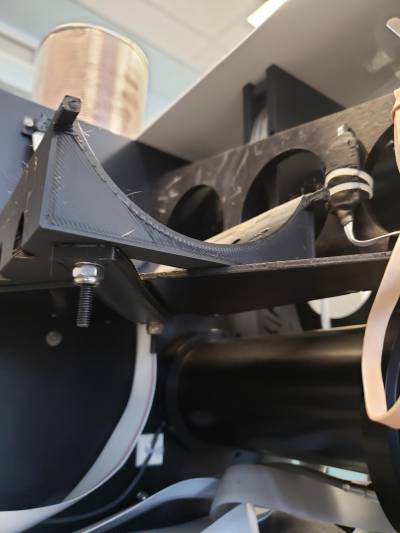

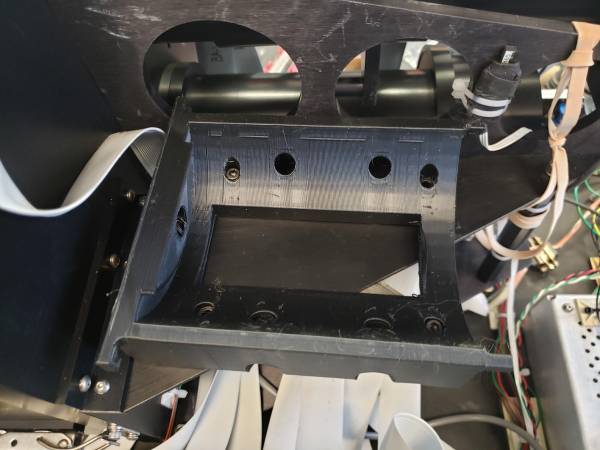

- Place the new desiccant holder as shown in the picture below.
- Secure the holder in place with the supplied crossbeam.

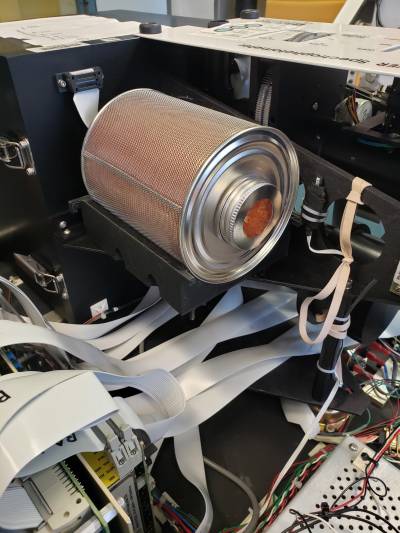

- Place a fresh can of desiccant into the holder.
