Single Board Electronics
The single board electronics, sometimes referred to new electronics are usually used in the MKIII Brewers. There's a very small numbers of MKIV brewers that may run a single board electronics. The single board electronics consist of the primary power supply¹ (PPS), lamp control board and the high voltage module. There are two version of the single board electronics, V1 and V2. See here for firmware programing instructions.
¹Note, both multiboard and single board electronics both have an PPS, however the multiboard uses a 24V/15V/5V power supply while the single board electronics uses 24V/12V/5V power supply. The latest brewer's produced by Kip and Zonen (around Brewer # 250) uses the TDK-Lambda NV175 series power supply. The single Electronics board uses NV1-4G5TT, where the multiboard uses the NV14G5FF.

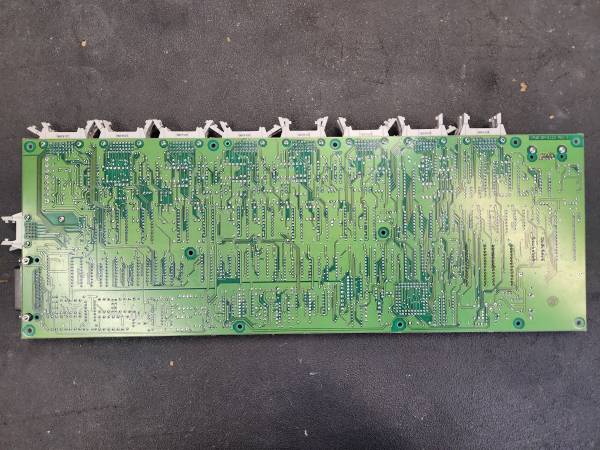

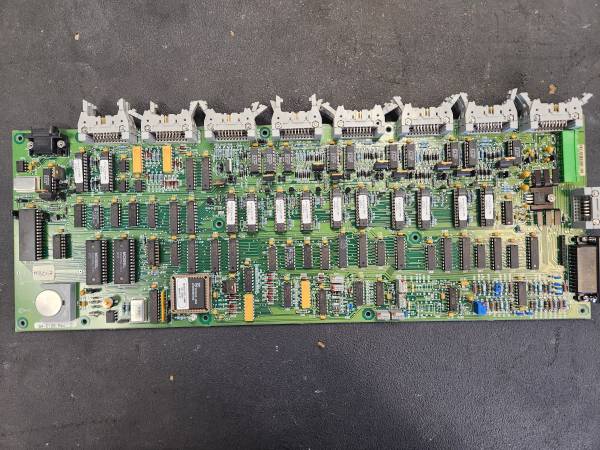

Version 1 boards

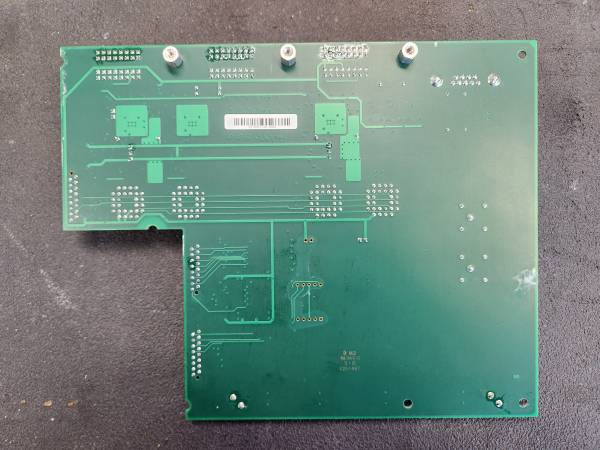

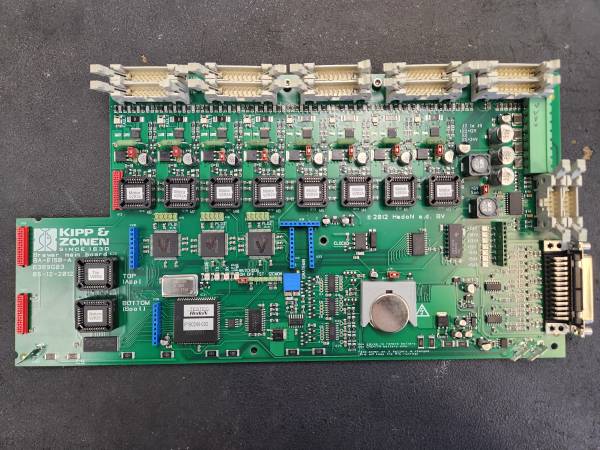

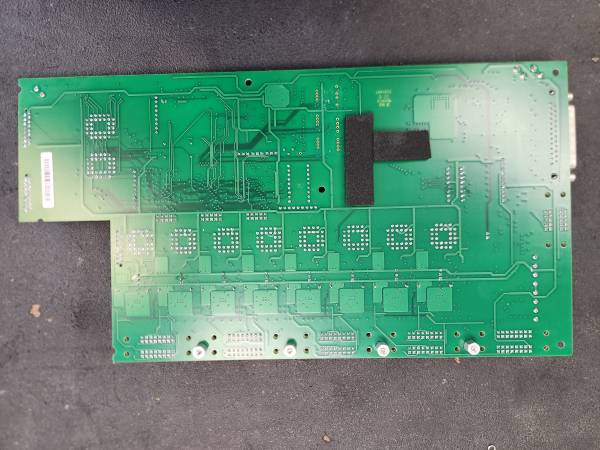

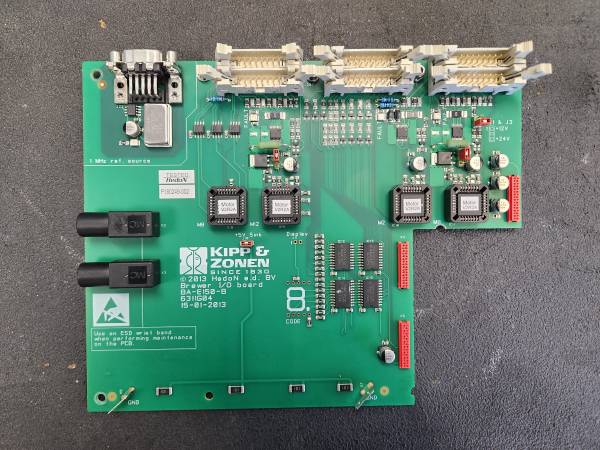

Version 2 Boards
Mainboard Flat Cable Connections
| Cable | Name | Useage | Default Address | Jumper settings |
|---|---|---|---|---|
| J2 Top | BA-W77/A | Lamp Board | ||
| J2 Bottom | BA-W77/B | J1 on hv module | ||
| J13 Top | BA-W76/B | Iris | Motor 3 | [E35 E37] (E38 E38) |
| J13 Bottom | BA-W76/A | Zenith | Motor 1 | [E39 E40] (E41 E42) |
| J14 Top | BA-W76/B | Filter wheel #1 | Motor 4 | [E71 E72] (E73 E74) |
| J14 Bottom | BA-W76/B | Filter wheel #2 | Motor 5 | [E75 E76] (E77 E78) |
| J15 Top | BA-W76/A | Micrometer #2 (MKIII only) | Motor 9 | [E107 E108] (E109 E110) |
| J15 Bottom | BA-W76/A | Micrometer #1 | Motor 10 | [E111 E112] (E113 E114) |
| J16 Top | Spare | Motor 7 | [E143 E144] (E145 E141) | |
| J16 Bottom | BA-W76/C | Filter wheel#3 (MK IV only} | Motor 6 | [E147 E148] (E149 E150) |
| J17 Top | BA-W76/B | Slitmask (shutter) | Motor 11 | [E179 E182] (E181 E182) |
| J17 Bottom | BA-W76/A | Azimuth | Motor 2 | |
| J12 Top | BA-W76/A | Control switch’s | ||
| J12 Bottom | ||||
| J20 Top | Spare | Motor 12 | ||
| J20 Bottom | Spare - New AZ motor | Motor 8 | ||
| J7 Top | Communication | |||
| J7 Bottom | Humidity sensor |
Note 1: Top Refers to the connector on the stop of the ribbon connector stack on a V1 board when looking at it on a birds eye view. For V2 boards, it is the connector closer to the bottom of the board.
Note 2: From the table above, J2 is the connector on the top right of the board, and going left. J7 is on the bottom right of the board.
Note 3: [] indicates 12V pair and () indicates 24V pair and bold indicates jumper default

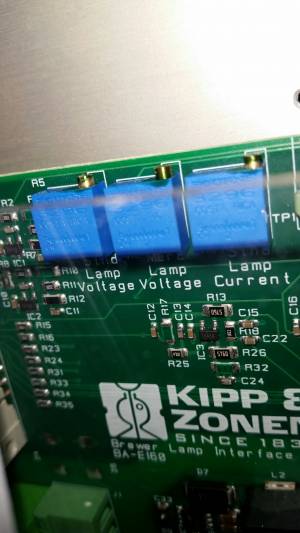

Lamp/Temp Board
| SL Voltage | HG Voltage | SL Current |

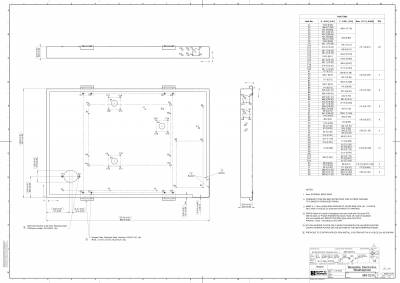

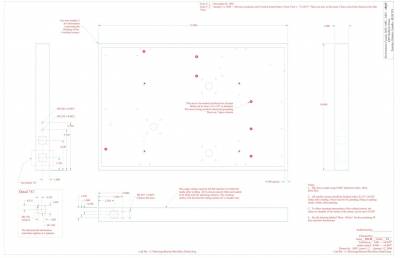

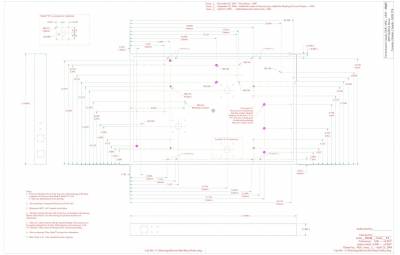

Brewer Base Plate
Troubleshooting
AP Lamps Results
Possible issues with via AP results
| Working Order | Disconnected DB connector @ Lamp | No power to Lamp Board | Missing 24V @ Lamp Board | Bad Connection on Power connector¹ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Name | Value Off | Value On | Value Off | Value On | Value Off | Value On | Value Off | Value On | Value Off | Value On |
| Std Lamp current(A) | 0.00 | 1.51 | 0.01 | 0.00 | 0.02 | 0.01 | 0.01 | 0.00 | 2.48 | 2.48 |
| Std Lamp Voltage(v) | 0.03 | 10.44 | 6.84 | 12.83 | 5.29 | 3.16 | 0.04 | 0.03 | 14.09 | 14.06 |
| Mer Lamp current(A) | 0.00 | 0.46 | 0.01 | 0.23 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
| Mer Lamp Voltage(v) | 0.54 | 12.86 | 0.56 | 12.88 | 5.48 | 3.25 | 0.03 | 0.01 | 14.81 | 14.11 |
¹More testing required.
Status LED
| LED Mode Indication | ¼Sec | ¼Sec | ¼Sec | ¼Sec | ¼Sec | ¼Sec | ¼Sec | ¼Sec |
|---|---|---|---|---|---|---|---|---|
| Cosmac Mode normal operation | on | off | off | off | on | on | on | off |
| Cosmac Mode with config missing | on | off | off | off | on | off | on | off |
| Loadmode Waiting for firmware | on | off | on | off | on | off | on | off |
| Loadmode with bad flash memory | on | on | on | on | on | on | on | off |
| Loadmode with Good flash memory | on | on | on | on | on | on | on | off |
| Opmode with config | on | on | off | off | on | on | off | off |
| Opmode without config | on | on | off | off | on | off | on | off |
| Checking flash memory | on | off | on | off | off | off | off | off |
| Changing modes | on | on | on | on | on | on | on | on |
Commands
Frequency used commands in MM
| Command | description |
|---|---|
| I,X | Resets motor X |
| ?motor.ref.high[X] | checks the reference flag of motor X on the high side |
| ?motor.ref.low[X] | checks the reference flag of motor X on the low side |
| ?motor.address.[MOTOR] | checks the motor address used for MOTOR |
Changing Motor Address
The motor address can be changed in event of a bad motor driver or circuitry. This will require the ribbon cable to be physically moved to another connector as laid out here. Afterwards, enter MM or opmode in brewcmd.
!motor.address[motorname] 7 #replace 7 with the actual address you'd like to change to
i,10 #replace the 10 with the original address, this will reinitialize the motor
save #once you verify everything is working as expected, you can save which will use up on of the save slots. #otherwise when the brewer restarts, it'll be using the original motor address.
Motor names
- AZIMUTH
- IRIS
- FILTER.WHEEL.1
- FILTER.WHEEL.2
- FILTER.WHEEL.3
- MICROMETER.2
- MICROMETER.1
- SLITMASK.1
- SLITMASK.2
- TRACKER.ZENITH
- ZENITH
