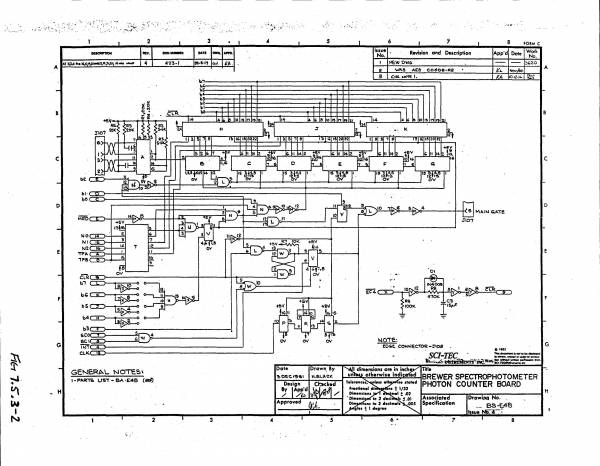

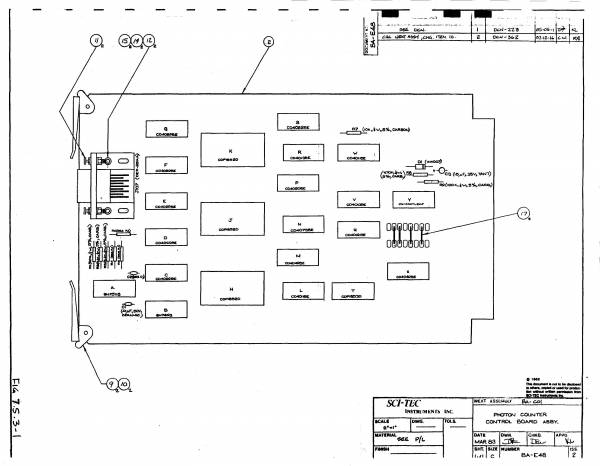

The photon counter board is used to count the intensity count coming from the PMT.

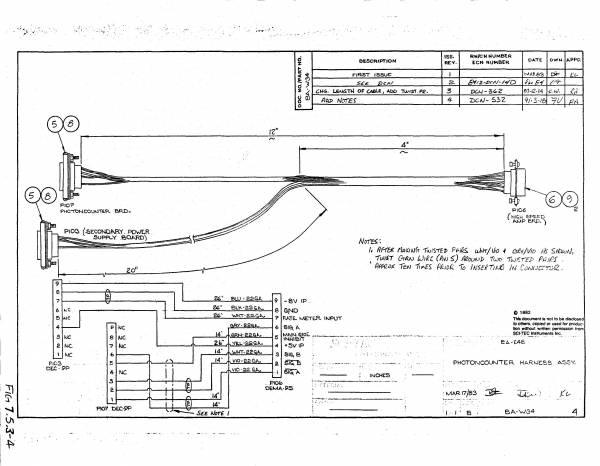

The DB9 Connector going from the PMT to the photon counter board

Note:

• Pin 1/6 a twisted pair
• Pin 2/3 is a twisted pair
• Pin 2/3 twisted pair is the only signal wire that is actually used for counting, Pin 1/6 is not used

• Oscilloscope
• Signal Generator
• Testing Jig (Optional, but see below)

Test Jig

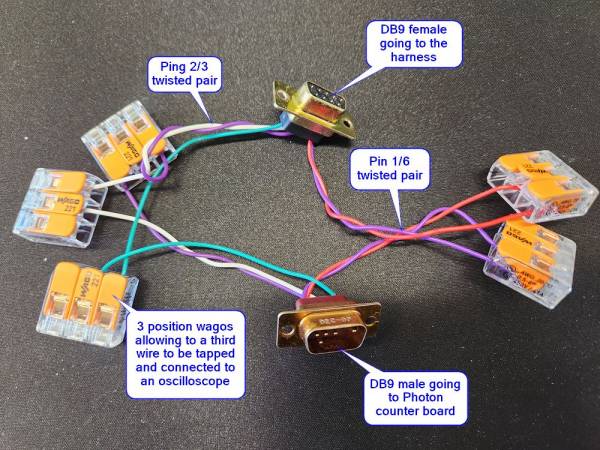

The test jig can be made with a male to female DB9 connector with pin 1, 2, 3, 5 and 6 connected (1/6, 2/3 should be a twisted pair). Pin 2 and 3 should be easily disconnected with something like a wago or a terminal strip.
Example of test jig

1. Turn off the brewer
2. Disconnect the DB9 connector from the photon counter board

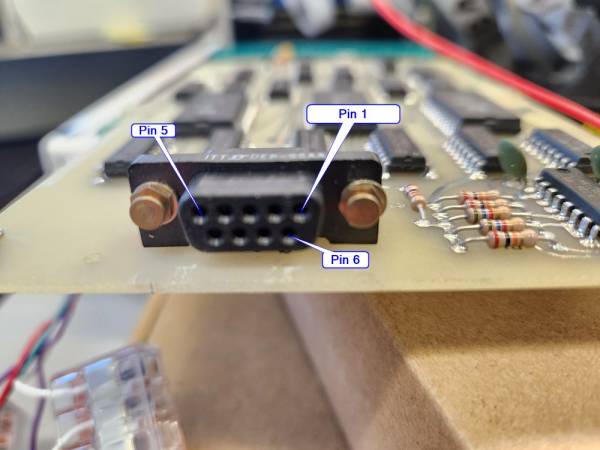

3. Hook up one of your oscilloscope lead to pin 5 of the DB9 connector
4. Turn on the brewer
5. Wait for the instrument to start up with the shutter click (It it does not, you may have to start up dosbox on the computer)

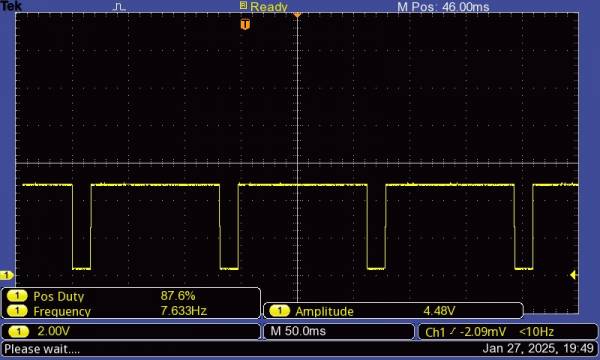

6. The signal coming out of pin 5 of the harness which sets the clock for the PMT should be about 7.6Hgz at 87% positive duty cycle.

1. Turn off the brewer
2. Remove the db9 connector from the photon counter board
3. Connect a signal generator to pin 1
4. Inject 3.8VDC square wave at 10Khz
5. In dosbox, enter MM
6. run R,0,7,1;o. You should be getting about 13,000 counts across all 7 slits.

1. Turn off the brewer
2. Connect the test jig between the PMT and the Photon Counter board
3. Turn on the brewer
4. With your oscilloscope, measure pin 2 and pin 3.
5. Run ZEB2

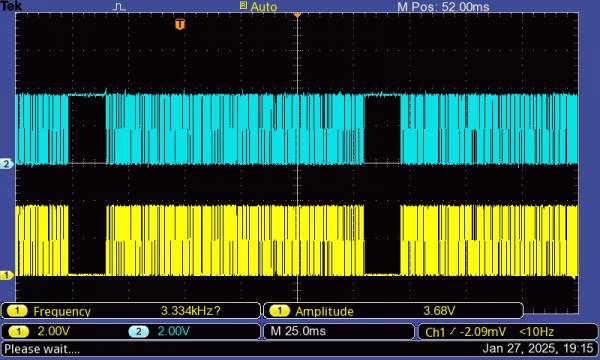

6. The output of the oscilloscope should look something like the following
