All The Fuses!
The brewer spectrometer has a ton of fuses used for differently applications. This is what fuses ECCC uses and for where. (Not this may differ from what is shipped from the manufacture)

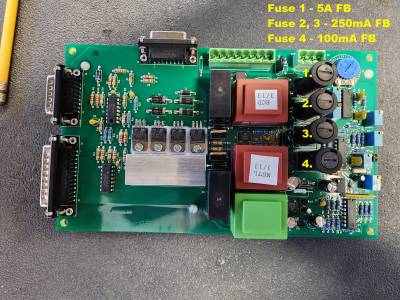

Tracker
Inside the tracker has a 5A slow blow inline fuse for all the power including the tracker electronics and brewer
Brewer - Old Electronics

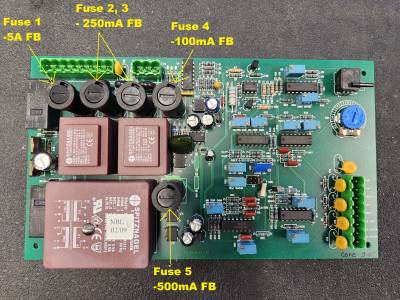

Environmental Control Board (ECB)
Inside brewer
Brewer - New Electronics
Heater uses a 5A FB fuse Brewer uses a 2A SB fuse
List of Fuses used
- 5A SB (Tracker main fuse)
- 4A SB (ECB in-line)
- 2A FB (Tracker Heater in-line)
- 2x 5A FB (mini - ECB and tracker board)
- 4x 250mA FB (mini - ECB and tracker board)
- 2x 100mA FB (mini - ECB and tracker board)
- 500mA FB (mini - ECB)
- 5A FB (mini Brewer SB Electronics)
- 2A SB (mini Brewer SB Electronics)
ECCC Fusebox kit layout
| 100ma FB(M) | 250ma FB(M) | 2A FB(M) | 5A FB(M) | 5A FB(M) |
| 100ma FB(M) | 250ma FB(M) | 2A FB(M) | 2A FB | 2A FB |
| 250ma FB(M) | 500mA FB(M) | 2A SB(M) | 4A FB | 4A FB |
| 250ma FB(M) | 500mA FB(M) | 2A SB(M) | 5A SB | 5A SB |
(M) = Mini fuses
